Breaking a shovel can render it pretty useless but it can easily be given a new lease of life by replacing the shaft and handle. A variety of different types of shafts and handles are available from garden centres or online.
38210

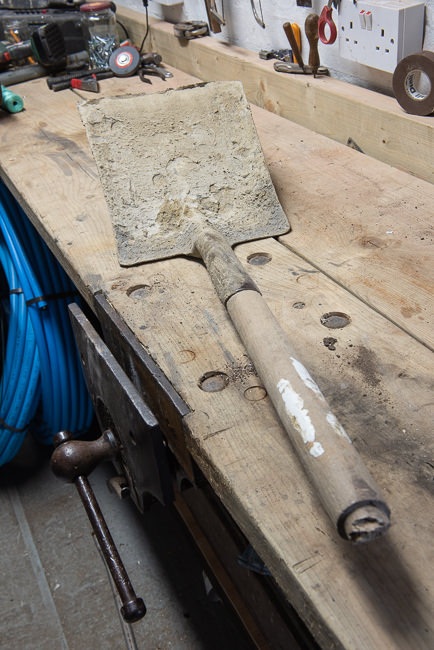

Repairing a metal shovel's broken wooden shaft and handle
38211

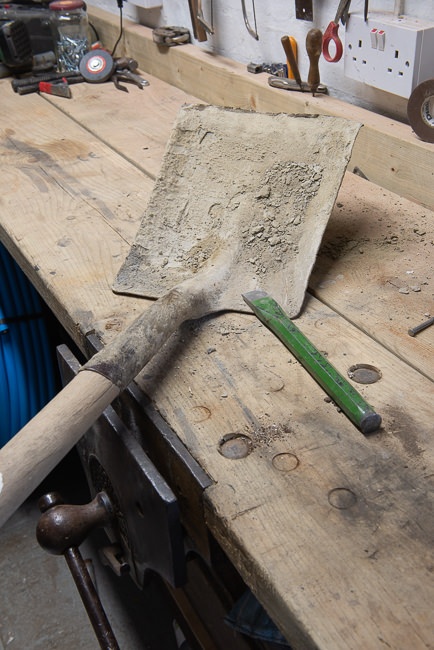

Chip off any caked on cement or concrete using a metal cold chisel
38212

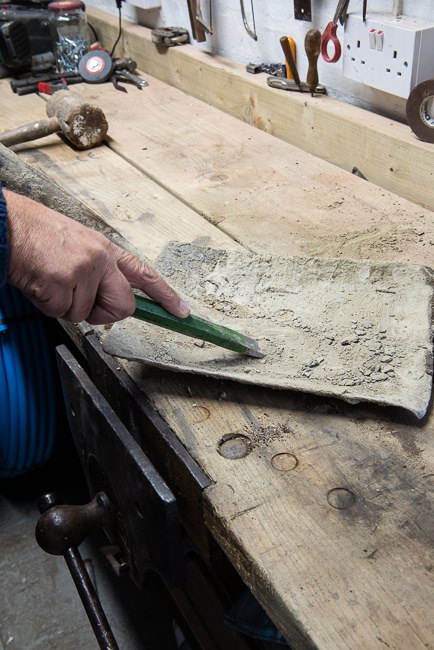

Chip off any caked on cement or concrete using a metal cold chisel
38213

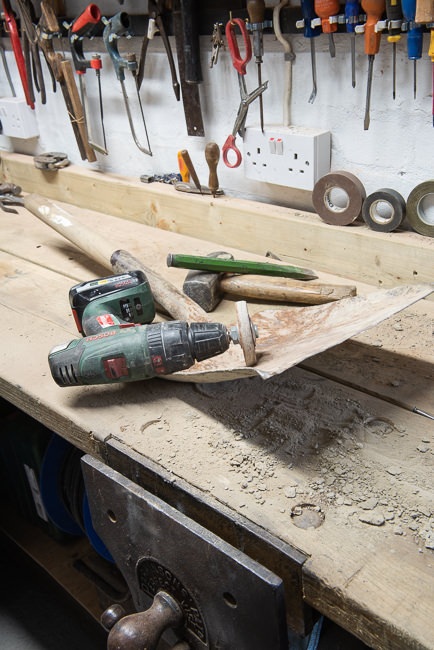

Use a drill with a grinding attachment to remove any stubborn bits of cement
38214

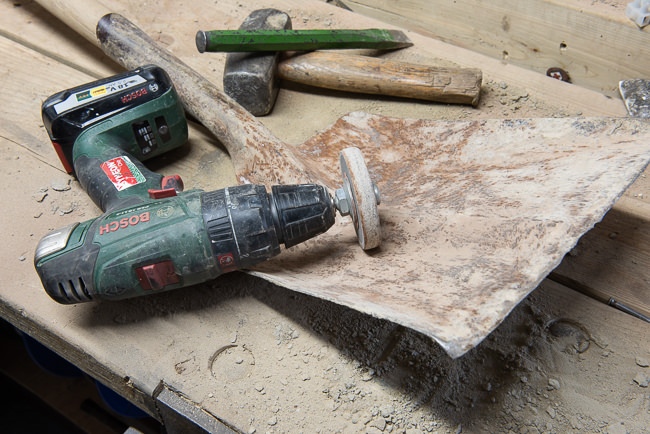

Use a drill with a grinding attachment to remove any stubborn bits of cement
38215
Use a drill with a grinding wheel attached to grind down the head of the metal stud
38216

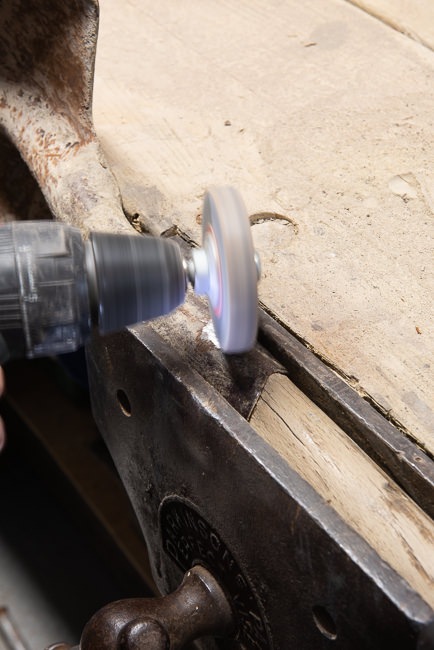

Use a drill with a grinding wheel attached to grind down the head of the metal stud
38217

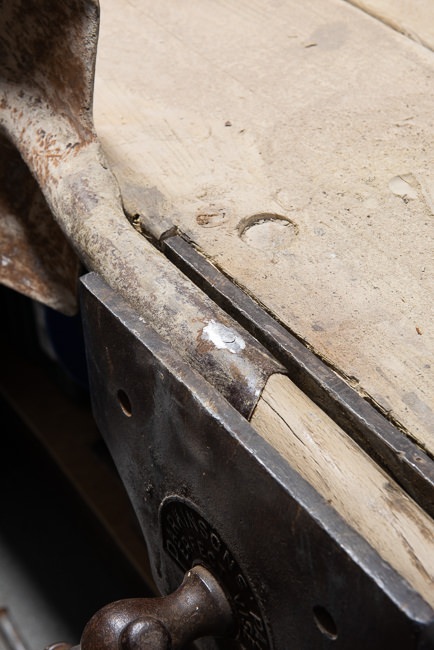

Use a drill with a grinding wheel attached to grind down the head of the metal stud
38218

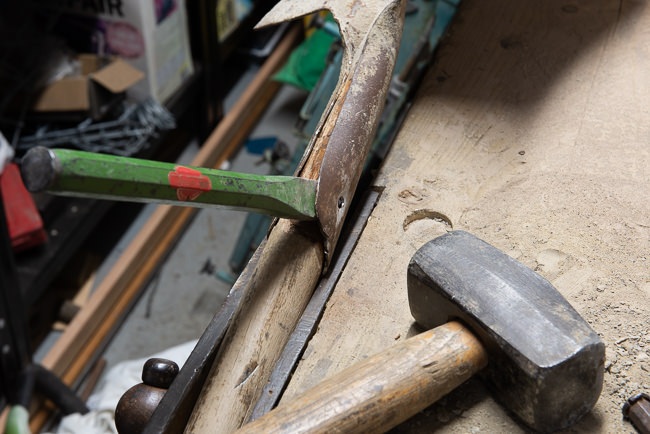

Using a cold chisel and club hammer lever the metal shoulder away from the wooden shaft
38219

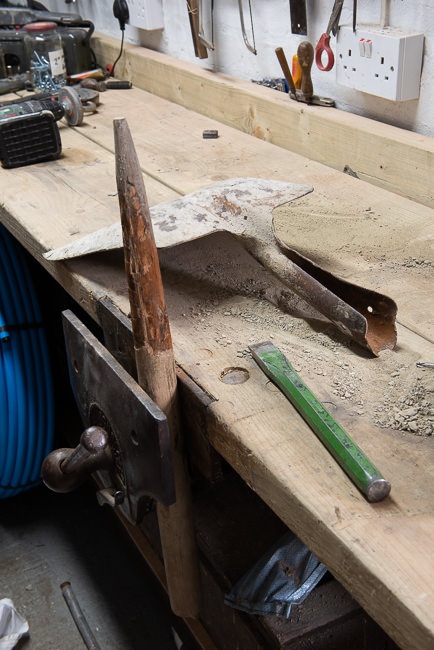

Clamp the wooden shaft into a metal vice and remove the shovel
38220

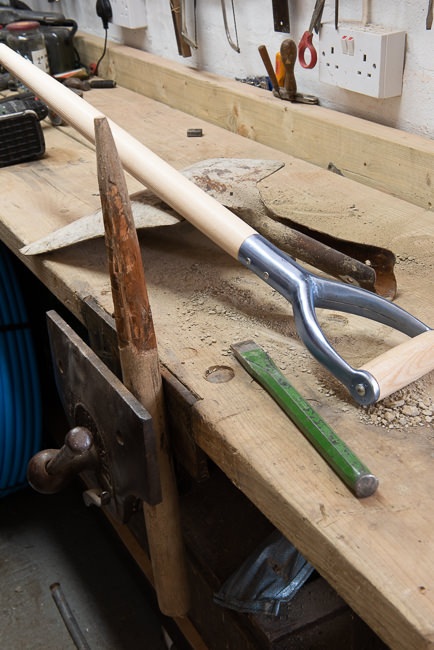

Clamp the wooden shaft into a metal vice and remove the shovel
38221

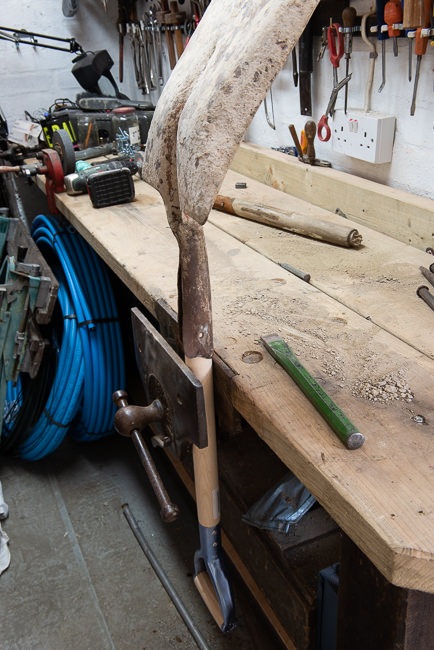

Clamp the new wooden shaft and handle into a vice and fix metal shovel onto shaft making sure that the shovel and handle are aligned correctly
38222

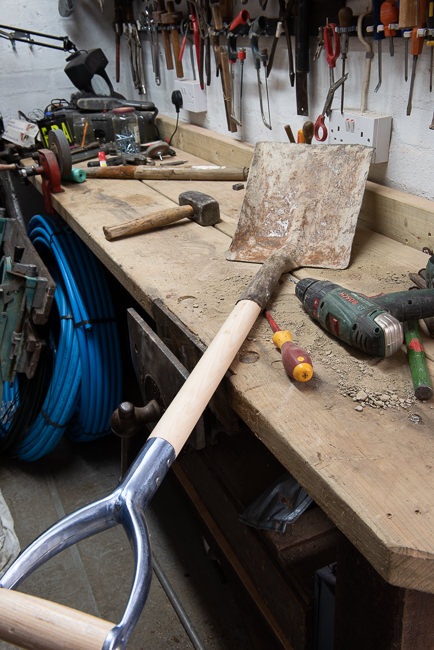

drill a pilot holes and screw shovel onto wooden shaft
38209

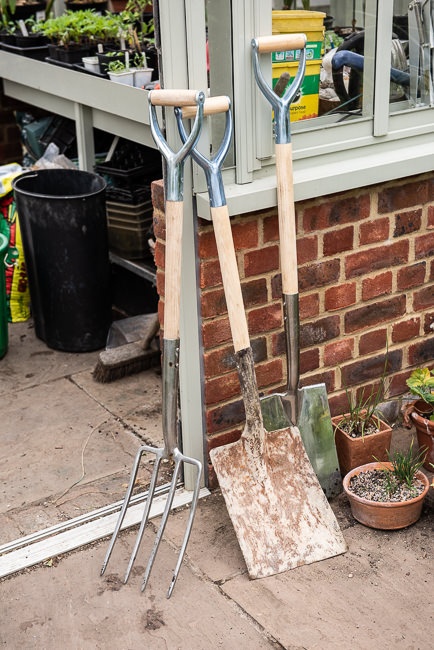

Repairing a broken garden tool with new wooden shafts and handles
