Breaking a spade can render it pretty useless but it can easily be given a new lease of life by replacing the shaft and handle. A variety of different types of shafts and handles are available from garden centres or online.
38233
Clamp the steel spade into a vice so that the metal studs are visible and accessible. If it is fixed by screws, unscrew them
38227

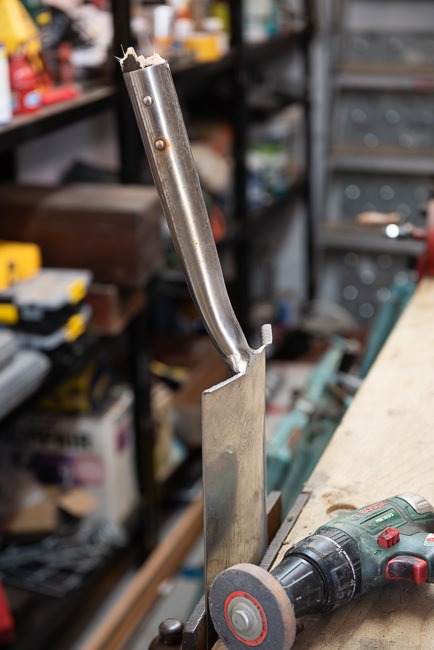

Use a drill with a grinding wheel attached to grind down the head of the metal studs
38224
Clamp the steel spade into a vice so that the metal studs are visible and accessible. If it is fixed by screws, unscrew them
38235

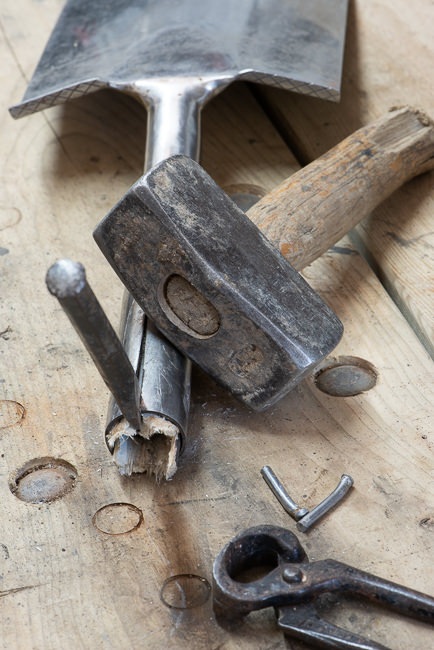

Use a cold chisel and club hammer to loosen and ease apart the spade from the broken shaft
38225

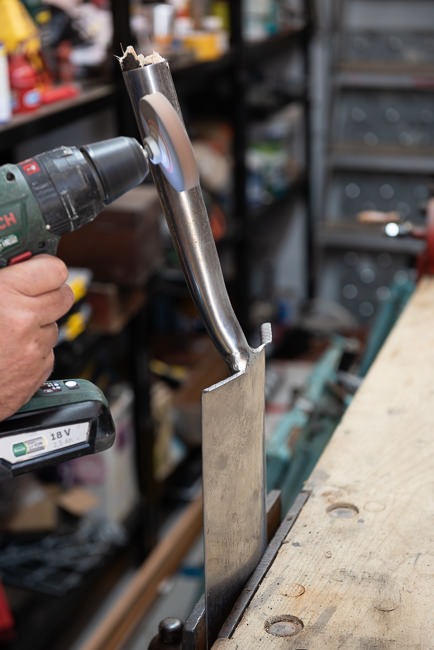

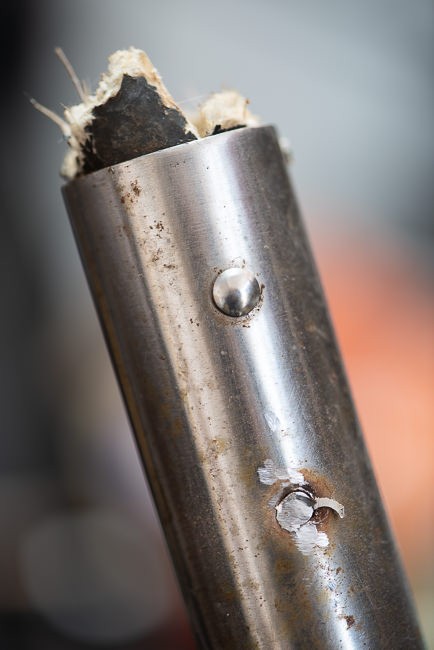

Use a drill with a grinding wheel attached to grind down the head of the metal studs
38243

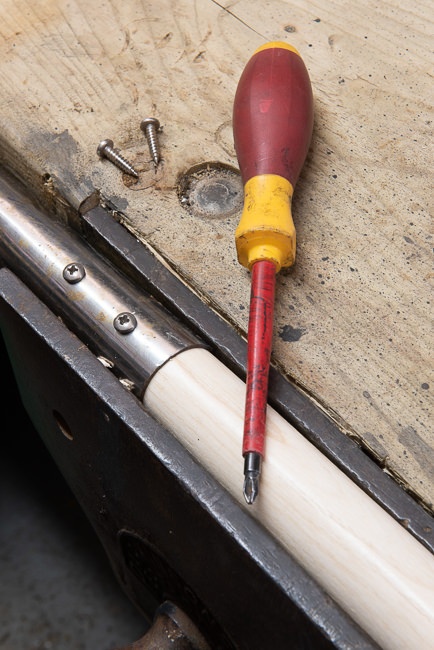

Fix stainless steel screws through into shaft. Turn over and fix the other side
38230

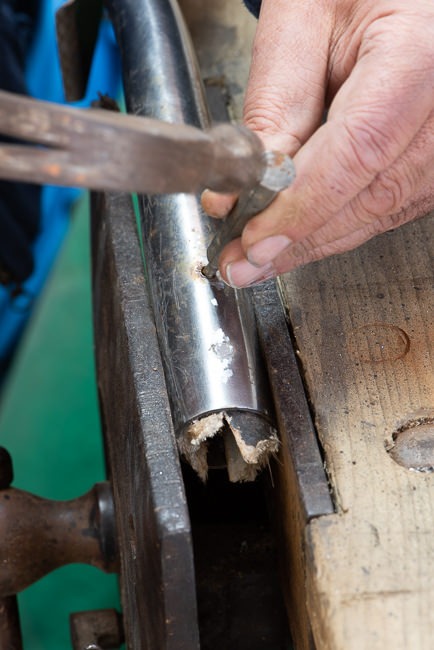

Use a metal punch and hammer to push out the metal studs
38231
Use a metal punch and hammer to push out the metal studs
38238

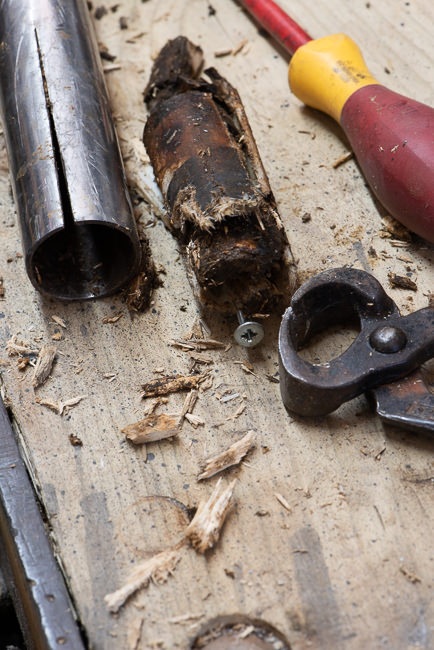

Broken shaft removed from spade using a claw hammer and long screw
38234

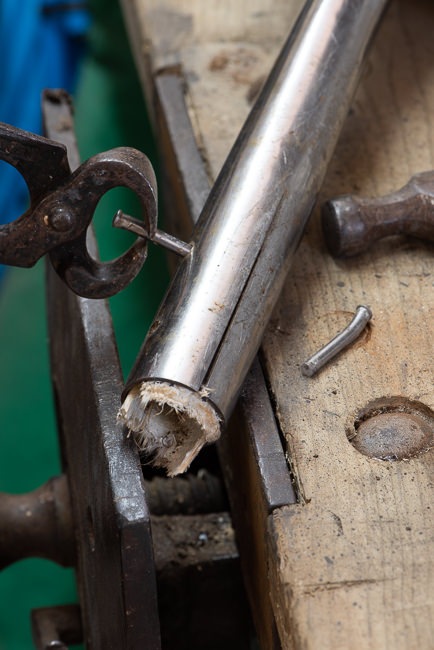

Use a claw pliers to remove the studs
38237
Broken shaft removed from spade
38240

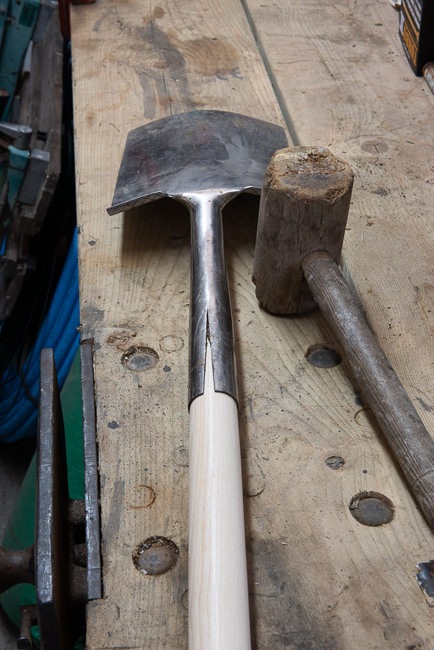

Make sure that the handle is aligned properlywith the spade
38233

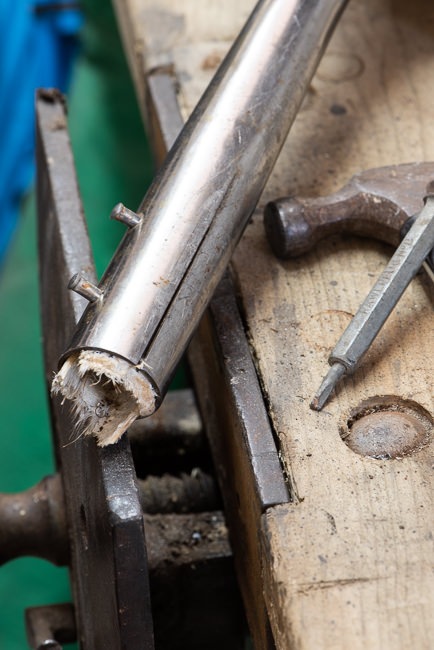

Release the spade from the vice and turn over to reveal the metal studs
38232

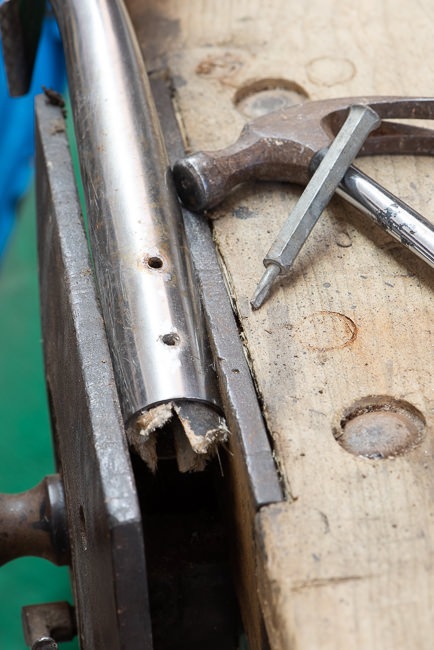

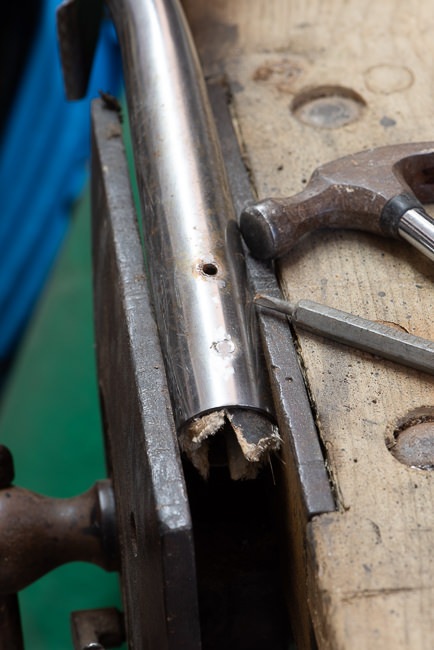

Use a metal punch and hammer to push out the metal studs
38236

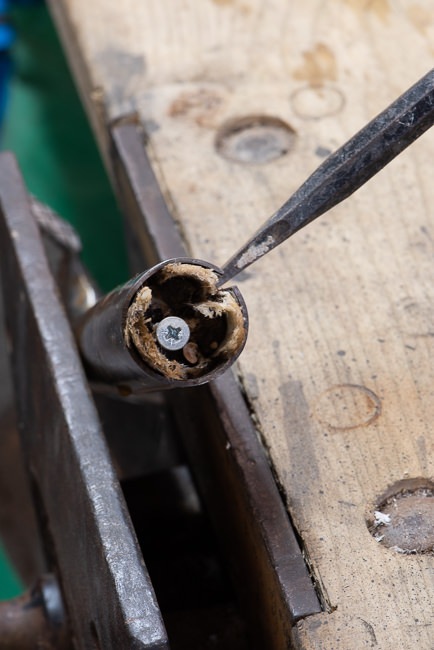

If the shaft istill won't budge screw in a long screw and grip with a claw pliers to remove from spade
38239

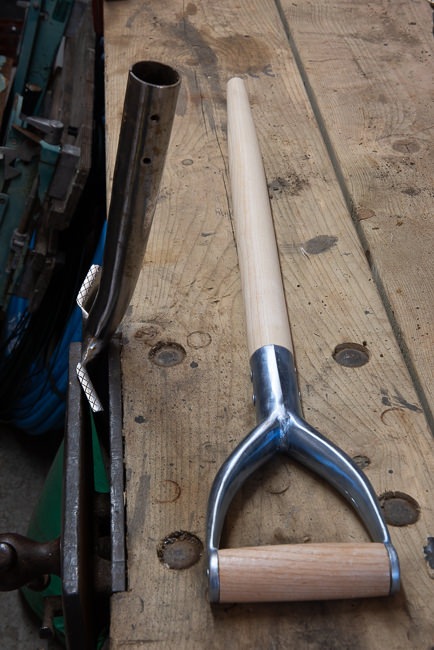

clamp the spade into the vice and insert new wooden shaft and handle. Make sure that the handle is aligned properlywith the spade
38229

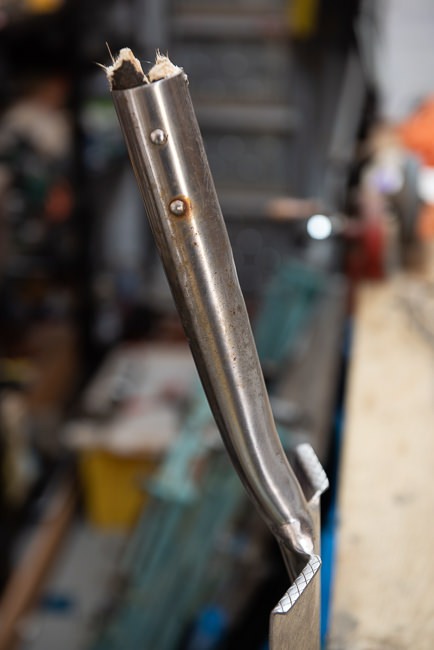

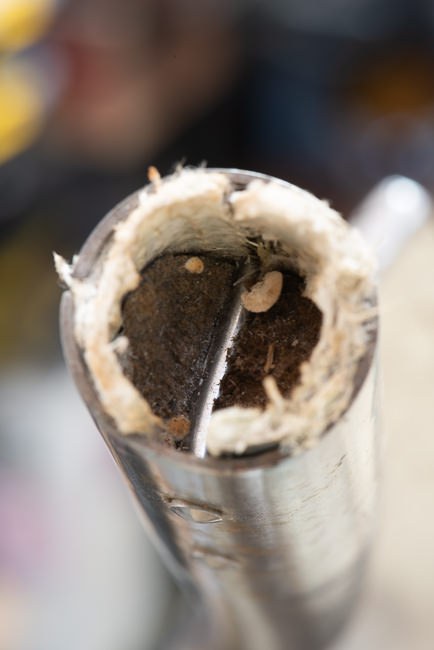

Stud viewed from top of spade
38242

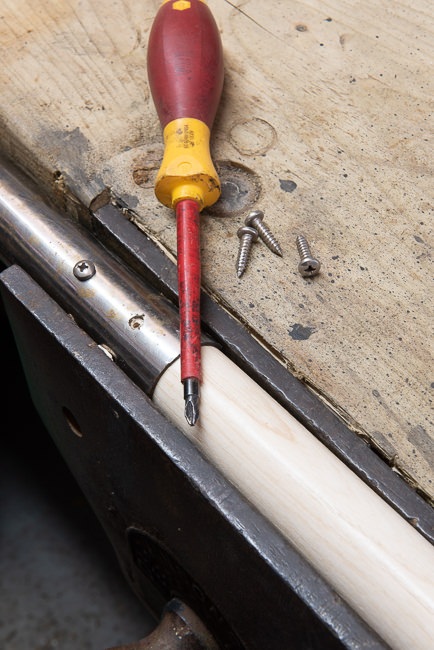

Fix stainless steel screws through into shaft. Turn over and fix the other side
38241

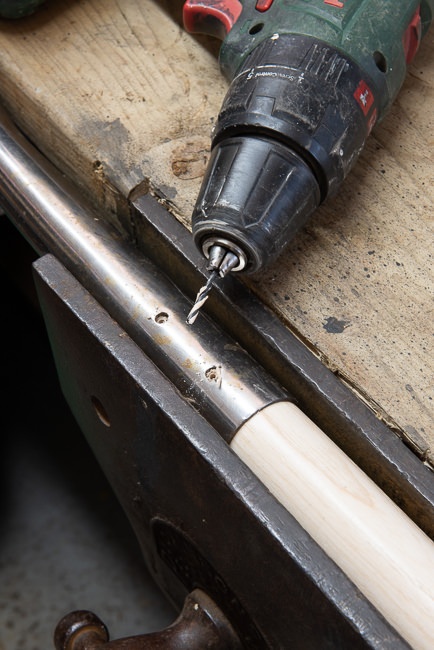

Drill pilot holes through the side of the spade into the shaft
38226

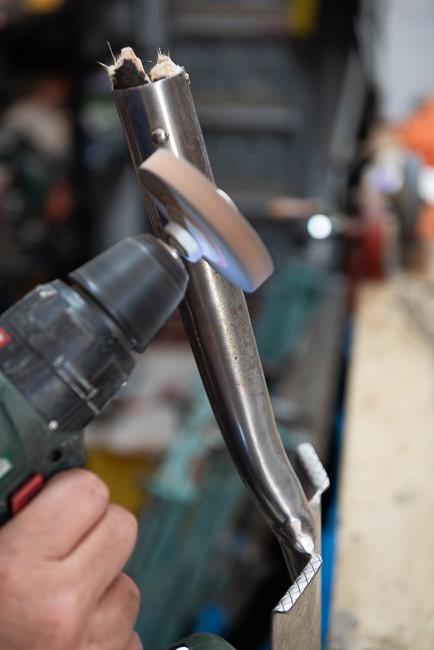

Use a drill with a grinding wheel attached to grind down the head of the metal studs
38228

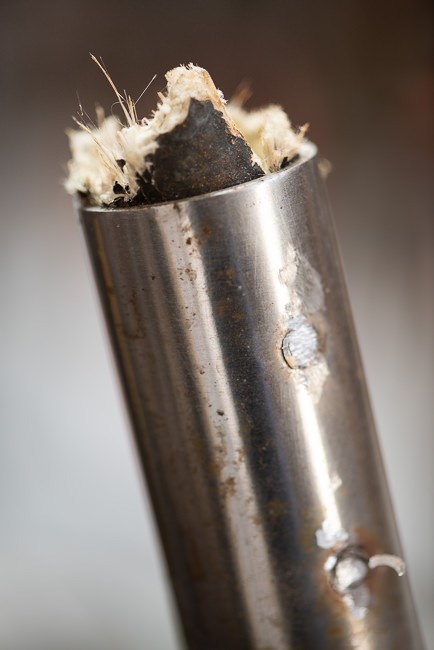

Use a drill with a grinding wheel attached to grind down the head of the metal studs
38207

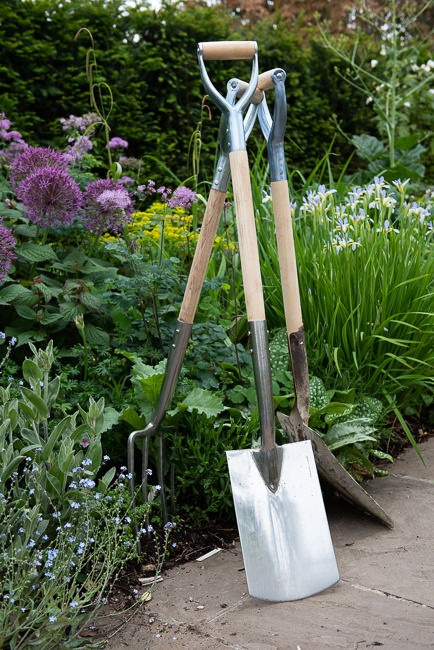

Repairing a broken garden tool with new wooden shafts and handles
38206

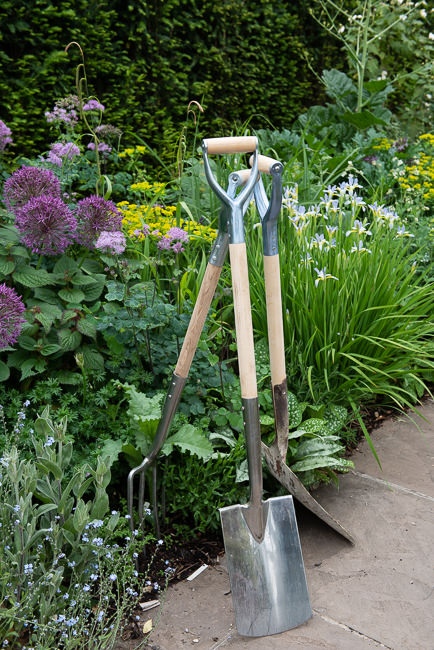

Repairing a broken garden tool with new wooden shafts and handles
